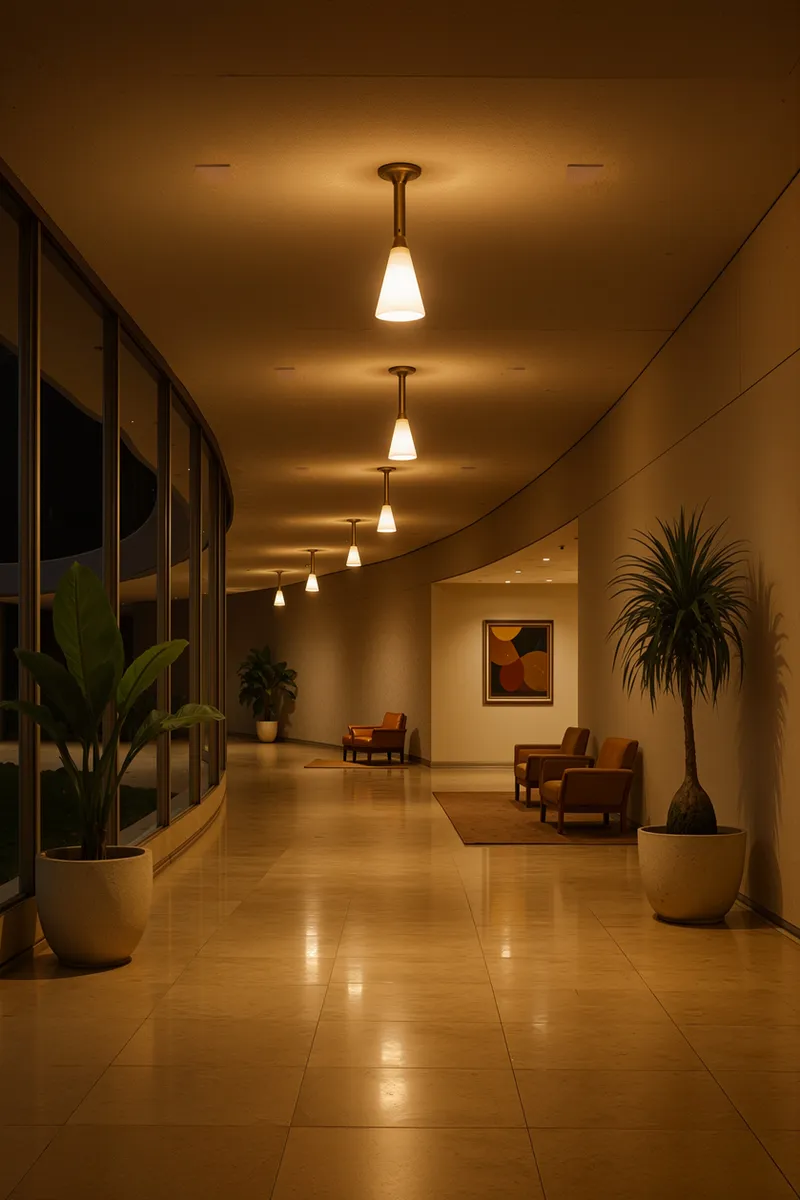

Magna Audio Micro-Framed 3 and 4 Speakers — manufacturer product or installation image; finish shown is illustrative

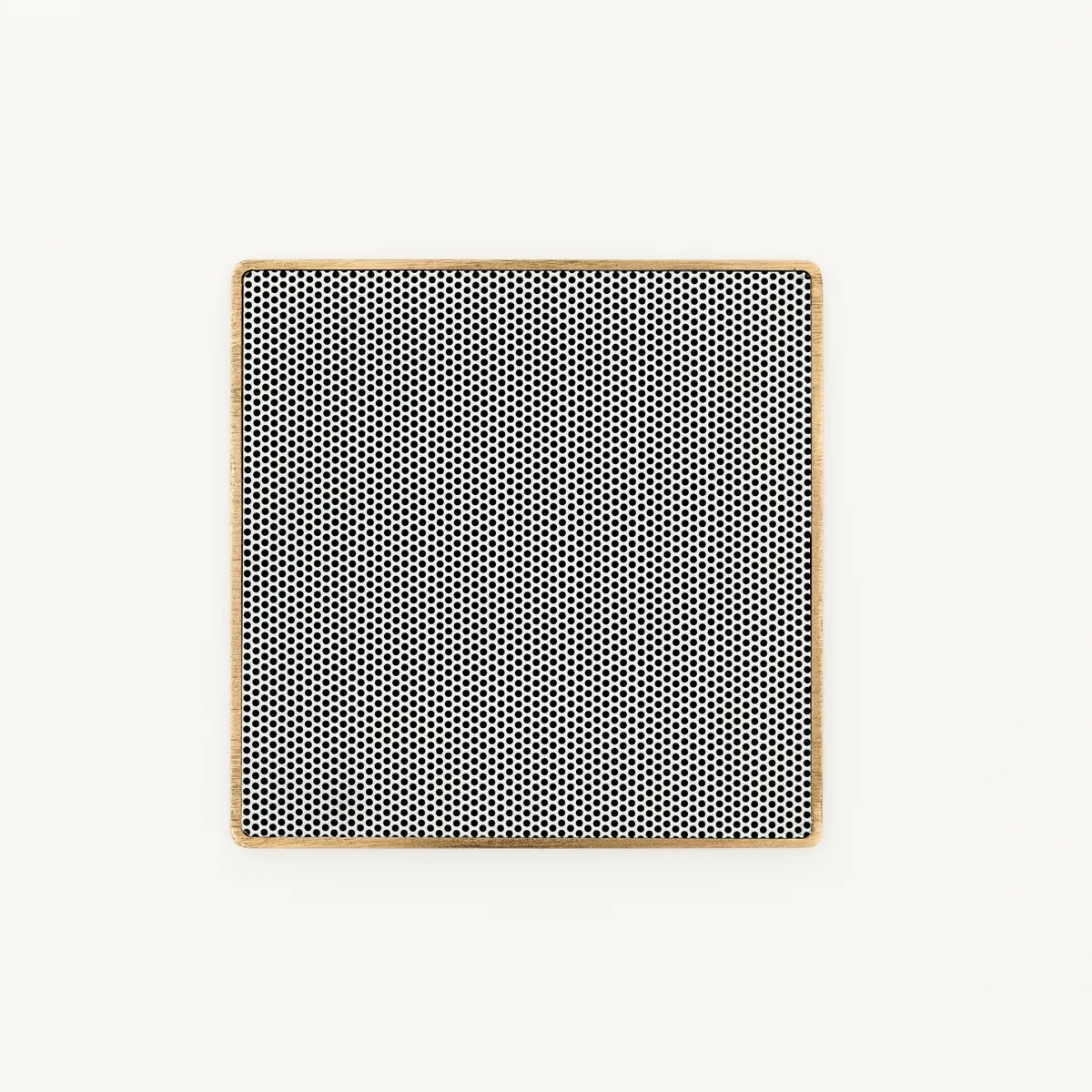

Magna Micro-Framed square speaker grille in a wood-panel installation

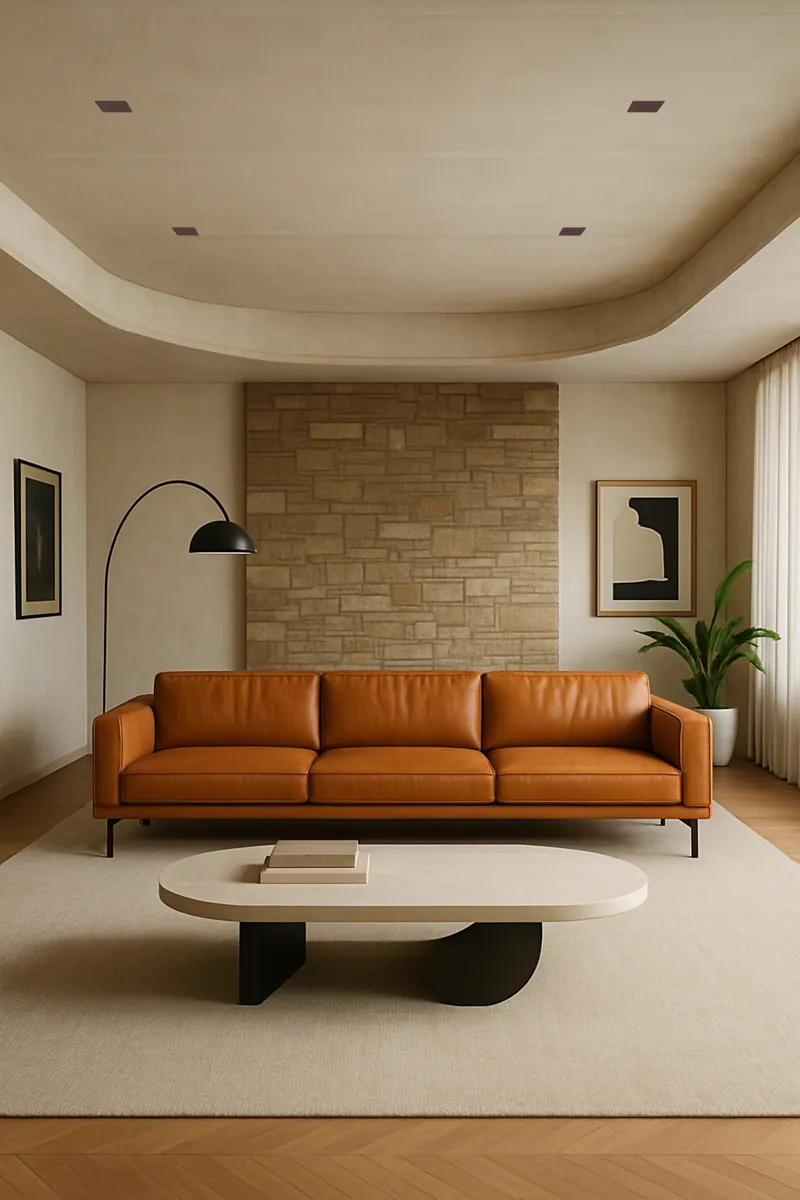

Magna Micro-Framed ceiling speakers in a living-room installation
Manufacturer

Magna Audio

Magna Audio Micro-Framed 3 and 4 Speakers

SKU: AG-MAGNA-MICRO-FRAMED-3-AND-4-SPEAKERS
Availability on request

Price on request. Ask for a quotation including GST. GST invoice available.

Share your PIN code for delivery details or discuss installation in Pune, Maharashtra and across India.

Product & project advice · Shipping information · Returns policy

Enjoy a neat ceiling finish with a fine visible frame. Micro-Framed 3 and 4 suit background music and distributed audio while keeping the speaker discreet.

Price on request. Enquire for your configuration, finish and quantity. GST invoice provided. Confirm availability and India warranty before ordering.

Request a Quote
Talk to our Pune team

Call +91 72194 31747

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Category:
Brand:
  • GST invoice

    Provided with your purchase

  • System matching

    Advice for your equipment and room

  • Project planning

    Pune, Maharashtra & India

  • Purchase clarity

    Confirm delivery and model warranty

AUDIOGURU · PUNE & INDIA

Make it part of the right system.

Tell us about your room, existing equipment and budget. Our Pune team can help you check compatibility, plan installation and confirm availability before you order.

Plan my setupCall +91 72194 31747Pune showroom · Mon–Sat, 11 am–7 pm

Description

Micro-Framed 3 and 4 Speakers

Enjoy a neat ceiling finish with a fine visible frame. Micro-Framed 3 and 4 suit background music and distributed audio while keeping the speaker discreet.

Plan the ceiling layout before choosing the cut-outs

For background music, think about where people sit and move around the room. Ceiling height, room shape and furniture all influence speaker placement. Share a reflected ceiling plan so the speakers can be coordinated with lights, fans and air-conditioning outlets.

The 3-inch model has the smaller face and cut-out; the 4-inch model has a larger driver and a lower manufacturer-listed frequency limit. Choose the size to suit the listening level and available space. Both are passive speakers, so plan the amplifier, wiring and control zones at the same time.

Explore other in-ceiling speakers, discuss additional bass from the Bandpass 8 subwoofer, or browse the Magna Audio collection. AudioGuru in Pune can review your room plan and quotation for Pune, Maharashtra or another India installation, with GST and the agreed installation scope clearly shown.

Technical details and choices

Micro-Framed 3 and 4 Speakers — configuration guide
Micro-Framed 3 3-inch full-range driver; 40 W manufacturer-listed power
Micro-Framed 4 4-inch full-range driver; 60 W manufacturer-listed power
Dispersion 120°
3: face / cut-out / depth 105 × 105 mm / 88 × 88 mm / 58 mm
4: face / cut-out / depth 118 × 118 mm / 105 × 105 mm / 63.5 mm
Location Indoor; ceiling or suitable wall-panel installation
Recommended amplifier range Micro-Framed 3: 10–40 W; Micro-Framed 4: 10–60 W, per the official technical table.
Impedance 16 Ω for both models; the complete channel load depends on speaker quantity and wiring.
Frequency response Micro-Framed 3: 100 Hz–20 kHz; Micro-Framed 4: 90 Hz–20 kHz.
Sensitivity 91 dB SPL (1 W/1 m), both models.
Construction and lighting Aluminium open-baffle structure; no integrated lighting.
Weight Micro-Framed 3: 0.73 kg; Micro-Framed 4: 0.77 kg.

Sources: customer-supplied MAGNA catalogue, pages 11–12; Official Magna product information, Official Magna technical information. Checked 29 October 2026. Images show an example finish or installation; the approved quotation defines your exact product.

Request a tailored quotation

Price on request. Share the model or configuration, quantity, preferred finish, room or garden plan and delivery PIN code. We will confirm the supplied equipment, availability and India warranty. Amplifiers, cabling, mounting, lighting accessories, delivery and installation are included only when listed in your quotation.

AudioGuru provides GST invoices. Our Pune team helps with system matching and project planning, with Pune and Maharashtra as our core installation areas. Projects elsewhere in India are arranged according to location and scope.

Frequently asked questions

How do I choose the right configuration?

Choose the model before your contractor cuts the ceiling. The two sizes use different openings, so we will match the room coverage, amplifier and finish to the planned installation.

Why is the price on request?

The supplied catalogue does not state a price. Model, quantity, finish and installation requirements can affect the quotation. Ask AudioGuru for a clear INR quotation with GST shown before ordering.

What is included with my order?

The approved quotation lists the exact product, finish, quantity and supplied accessories. A range page does not mean that every pictured component or configuration is included.

Can I discuss a project or arrange a demo in Pune?

Yes. Share your layout and requirements with AudioGuru. Confirm demonstration availability for the specific model before travelling. Our Pune showroom is open Monday–Saturday, 11 am–7 pm.

How many Micro-Framed speakers can share an amplifier channel?

Both models are listed at 16 Ω, but there is no single speaker count that suits every amplifier. The installer must calculate the final channel load, power requirement and wiring arrangement. Share the number of rooms and speakers before choosing amplification.
