Magna Audio Outline Architectural Speaker Series
Make wall-mounted speakers part of the room design. Outline offers slim speaker formats, a choice of finishes and optional lighting for living spaces, cinemas and suitable outdoor projects.
Price on request. Enquire for your configuration, finish and quantity. GST invoice provided. Confirm availability and India warranty before ordering.
Did you like this product? Add to favorites now and follow the product.
- GST invoice
Provided with your purchase
- System matching
Advice for your equipment and room
- Project planning
Pune, Maharashtra & India
- Purchase clarity
Confirm delivery and model warranty
AUDIOGURU · PUNE & INDIA
Make it part of the right system.
Tell us about your room, existing equipment and budget. Our Pune team can help you check compatibility, plan installation and confirm availability before you order.
Description
Outline Architectural Speaker Series
Make wall-mounted speakers part of the room design. Outline offers slim speaker formats, a choice of finishes and optional lighting for living spaces, cinemas and suitable outdoor projects.
Choose the format around listening distance and coverage
Outline brings several speaker formats into one slim visual family. Start with the room’s seating positions and the job each speaker will do: background music, a TV system, cinema channels or coverage across a larger space. The model choice should follow those needs before the finish is selected.
The compact LR, multi-driver 2D and 3D formats, cinema version and taller 6D/12D arrays have different driver arrangements and amplifier requirements. Check the exact model and wiring configuration, especially where more than one speaker shares an amplifier. Coordinate the tilt bracket, cable exit and optional lighting with the wall construction.
If you prefer the TV channels in one enclosure, explore the Outline custom soundbar. For an indoor decorative alternative, compare Surface wall speakers or browse the Magna Audio collection. AudioGuru’s Pune team can help plan model positions, finish choices and a clear quotation for Maharashtra and India installations.
Technical details and choices
| Formats | LR, 2D, 3D, 3D Cinema, 6D and 12D; 2D Stereo also listed by the manufacturer |
|---|---|
| 6D / 12D | Six / twelve 3-inch full-range drivers |
| 6D / 12D enclosure | Sealed aluminium; IP66 manufacturer rating |
| Use | Indoor or specified outdoor configuration |

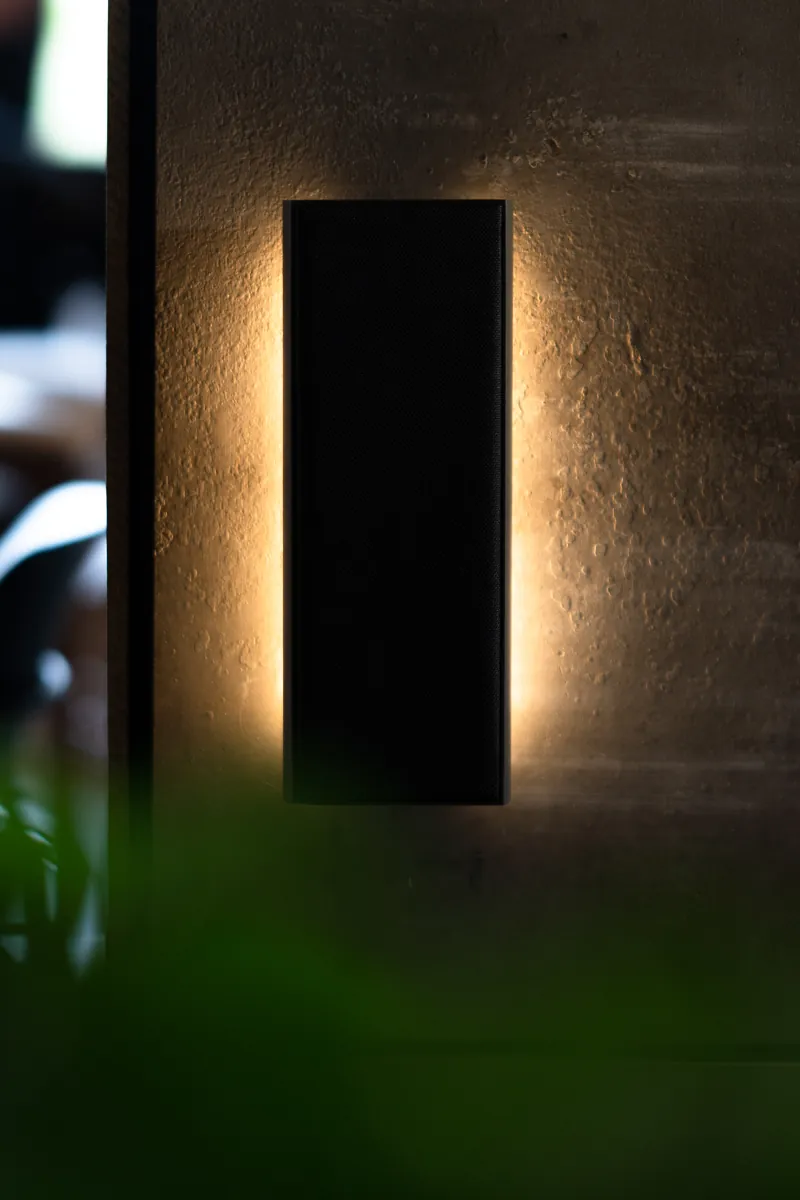

| Lighting | Optional dimmable 12 V LED; specify during quotation |
| Mounting | Wall installation; bracket and model requirements to be checked |
| LR / 2D / 3D drivers | LR: one 3-inch full-range driver per channel; 2D: two 3-inch drivers; 3D / 3D Cinema: three 3-inch drivers. |
| LR / 2D / 3D electrical specifications | LR: 8 or 16 Ω, 40 W per channel; 2D: 8 or 16 Ω, 80 W; 3D / 3D Cinema: 6 Ω, 120 W. Confirm the exact version and channel wiring. |
| 6D / 12D electrical specifications | Both 6 Ω; manufacturer recommended amplification: 240 W for 6D and 480 W for 12D. |
| Enclosure and protection by format | LR: ported aluminium, IP54. 2D and 3D formats: sealed aluminium, IP66. 3D Cinema uses a 1.5-way design with a dedicated crossover. |
| Frequency response | LR: 85 Hz–20 kHz; 2D, 3D, 6D and 12D formats: 110 Hz–20 kHz, per manufacturer tables. |
| Sensitivity | LR: 91 dB; 2D: 94 dB; 3D: 95.5 dB; 6D: 98.5 dB; 12D: 101.5 dB SPL (1 W/1 m). |
| Weight by format | LR: 1.85 kg; 2D: 3 kg; 3D: 3.40 kg; 6D: 5.3 kg; 12D: 10.6 kg, per manufacturer tables. |
| Indoor finish restrictions | Argenta enclosure finish and natural-straw grille options are intended for indoor use. Confirm model-specific finish availability. |
Sources: customer-supplied MAGNA catalogue, pages 15–18; Official Magna product information, Official Magna technical information, Official LR, 2D and 3D specifications. Checked 29 October 2026. Images show an example finish or installation; the approved quotation defines your exact product.
Request a tailored quotation
Price on request. Share the model or configuration, quantity, preferred finish, room or garden plan and delivery PIN code. We will confirm the supplied equipment, availability and India warranty. Amplifiers, cabling, mounting, lighting accessories, delivery and installation are included only when listed in your quotation.
AudioGuru provides GST invoices. Our Pune team helps with system matching and project planning, with Pune and Maharashtra as our core installation areas. Projects elsewhere in India are arranged according to location and scope.
Frequently asked questions
Can every Outline finish and model be used outdoors?
Specify the complete model, enclosure and finish for the site. Magna lists IP54 for Outline LR and IP66 for the 2D, 3D, 6D and 12D versions in its technical tables. Argenta and natural-straw finishes are intended for indoor use. Confirm mounting, cable protection and the supplied configuration rather than choosing an outdoor installation from appearance alone.
Additional information
| Manufacturer | Magna Audio |
|---|
