Definitive Technology Dymension DC-80 MAX SUR In-Ceiling Surround Speaker
₹46,500.00
The DC-80 MAX SUR is the surround-focused model in the MAX ceiling range.
- A surround-focused design combines an 8-inch woofer with two tweeters.
- Adjust the treble balance during final system setup.
Did you like this product? Add to favorites now and follow the product.
- GST invoice
Provided with your purchase
- System matching
Advice for your equipment and room
- Project planning
Pune, Maharashtra & India
- Purchase clarity
Confirm delivery and model warranty
AUDIOGURU · PUNE & INDIA
Make it part of the right system.
Tell us about your room, existing equipment and budget. Our Pune team can help you check compatibility, plan installation and confirm availability before you order.
Description
Definitive Technology at AudioGuru · Product and system advice
Dymension DC-80 MAX SUR: where it fits in your system

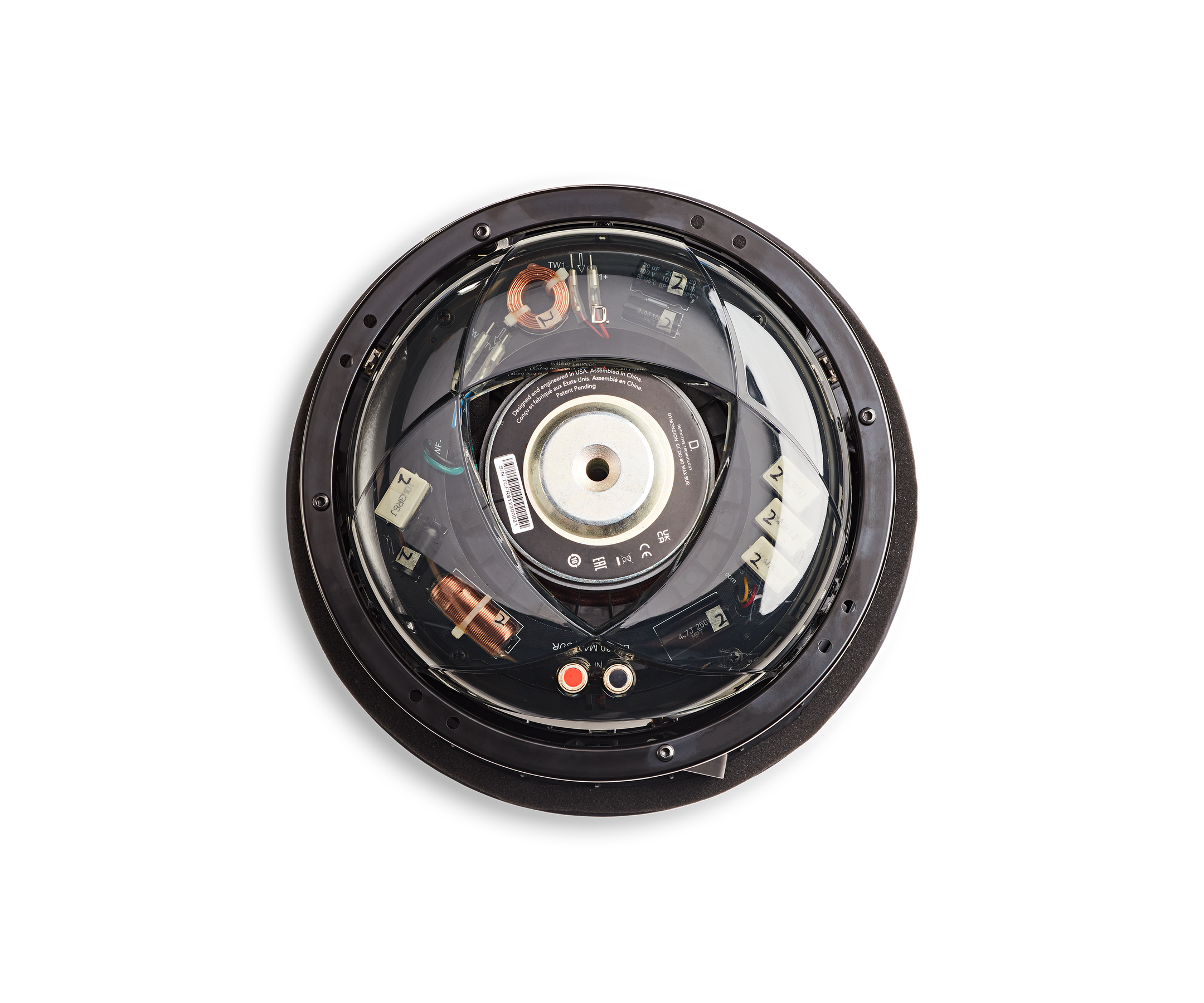

The DC-80 MAX SUR is the surround-focused model in the MAX ceiling range. Its 8-inch BDSS woofer and two aimable tweeters support a discreet overhead surround installation, with treble adjustment available during setup. Choose its position as part of the cinema channel layout rather than treating every ceiling opening as interchangeable.
Why consider this model?
- A surround-focused design combines an 8-inch woofer with two tweeters.
- Adjust the treble balance during final system setup.
- Paint the grille to coordinate with the room's finish.
Technical details
| Product type | Passive in-ceiling surround speaker |
|---|---|
| Mid/bass driver | 8-inch mineral-filled polypropylene BDSS with Linear Response Waveguide; pivoting |
| Tweeters | 2 × 1-inch pivoting aluminium oxide dome |
| Frequency response, −10 dB | 23 Hz–30 kHz |
| Frequency response, −3 dB | 36 Hz–25 kHz |
| Nominal impedance | 6 Ω |
| Sensitivity | 85 dB at 2.83 V / 1 m |
| Recommended amplifier power | 20–150 W — manufacturer recommendation |
| Overall diameter | 299.8 mm |
| Cut-out diameter | 268.6 mm; use supplied template |
| Nominal mounting depth | 135.7 mm — information sheet |
| Weight per speaker | 3.02 kg |
| Grille | White, paintable, microperforated magnetic grille |
| Ingress protection | IP55 — manufacturer rating; assess the installation location |
| Connection | Wired speaker-level connection to external amplification |
| Treble adjustment | Three positions: −2 dB, neutral / 0 dB, +2 dB |
The two frequency ranges use different measurement limits and should not be compared as identical bass-extension figures. Dimensions follow the official information sheet; leave the clearance required by the installation guide.
Plan the system and placement
Use these dimensions for planning. Before cutting, check the supplied template, actual speaker, cavity depth, fixing clearance and cable route. The installation guide may require more clearance than the nominal mounting depth. Follow the guide when aiming the woofer; press only the supported outer structure, not the cone. Start with neutral treble and calibrate with the room furnished. Use amplification suitable for the 6 Ω speaker load; any subwoofer and receiver calibration should be included in the complete system plan.
Package, availability and India warranty
The manufacturer lists the speaker and frame, paintable magnetic grille, cut-out guide and literature pack. Amplification, speaker cable and installation are planned separately; optional pre-construction brackets are not assumed included.
NEEDS CONFIRMATION: current India availability, exact package and applicable India warranty. Ask AudioGuru to itemise the speaker quantity, accessories and installation work on the quotation. Regional warranty terms shown on an overseas brand page do not establish the warranty for your purchase.
Buying advice from AudioGuru
Tell us about your room, the equipment you already own and what you enjoy listening to. We can help check whether the Dymension DC-80 MAX SUR fits the complete system before you decide.
- System matching: discuss receiver or amplifier compatibility, placement and the complete equipment list.
- Clear pricing: displayed prices include GST. Price-on-request products receive a quotation, and GST invoices are provided.
- Project support: Pune and Maharashtra are our core sales and installation areas. Projects elsewhere in India can be discussed according to scope and location.
- Showroom advice: Monday–Saturday, 11 am–7 pm. Contact us first to confirm demonstration availability for this model.
Frequently asked questions
Is the DC-80 MAX SUR a single-speaker stereo model?

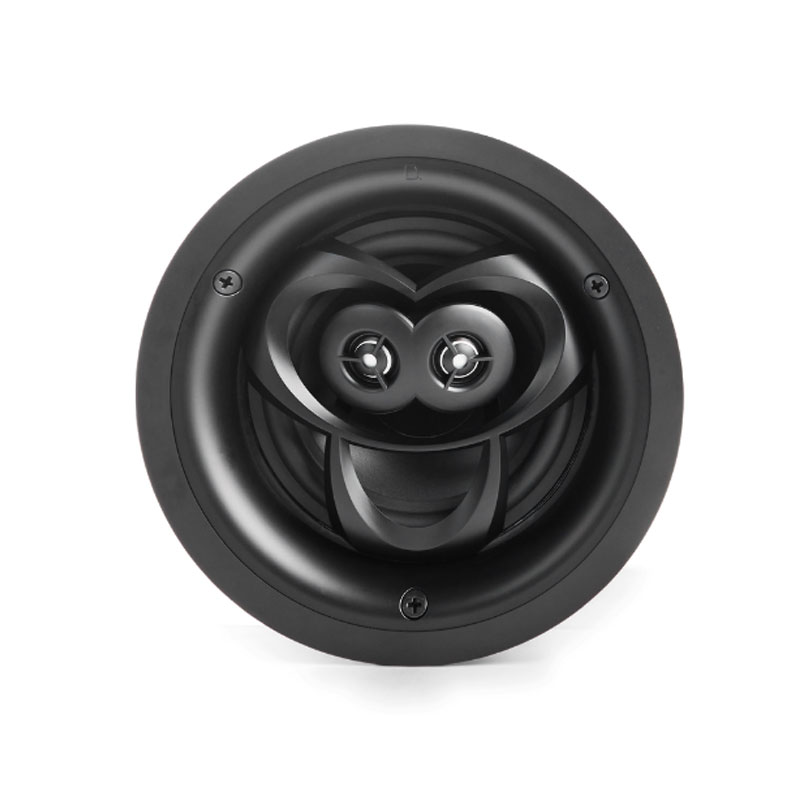

The brand describes it as a ceiling surround speaker. The installation guide reserves the separate stereo-input arrangement for the DC-65 PRO SI. Plan this model as part of the receiver's surround-channel layout.
Can it be used in a humid or outdoor area?
The manufacturer rates this model IP55. Ask the installer to assess the intended location, exposure, mounting surface and cable protection; the rating is not a claim that the speaker can be submerged.
How do I confirm the India price and delivery?
Contact AudioGuru with the model, finish, required quantity and delivery PIN code. Ask for current availability, the GST-inclusive quotation where required, package contents and applicable India warranty. GST invoices are provided.
Can AudioGuru help with a setup in Pune or Maharashtra?
Yes. Share your room plan, equipment and location to discuss the scope. Our showroom is at Shop 9, Millenium Star, Dhole Patil Road, near Ruby Hall Clinic, Sangamvadi, Pune 411001. Projects elsewhere in India can also be discussed.
Our buying recommendation
Consider the DC-80 MAX SUR when a planned cinema system calls for a discreet ceiling surround speaker.
Official manufacturer references
- Dymension DC-80 MAX SUR — Official product page
- Dymension DC-80 MAX SUR — Product information sheet
- Dymension DC-80 MAX SUR — Installation guide
Product information reviewed on 20 October 2026. AudioGuru buying guidance based on manufacturer documentation.
