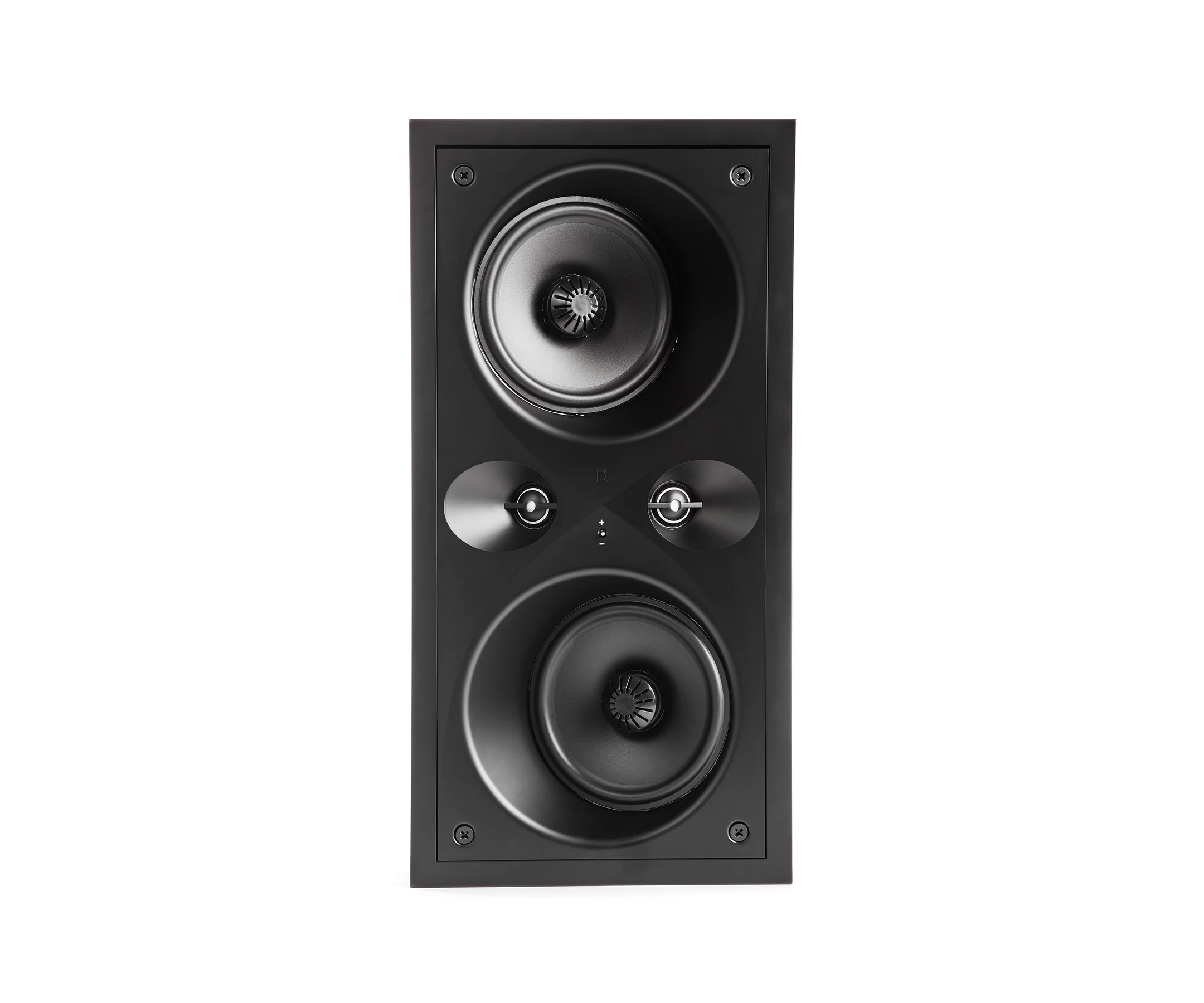

Definitive Technology Dymension DW-MAX SUR Bipolar In-Wall Surround Speaker
₹53,000.00
The DW-MAX SUR is a dedicated bipolar in-wall surround speaker.
- A dedicated bipolar array supports an enveloping surround layout.
- Adjust the treble balance during final system setup.
Did you like this product? Add to favorites now and follow the product.
- GST invoice
Provided with your purchase
- System matching
Advice for your equipment and room
- Project planning
Pune, Maharashtra & India
- Purchase clarity
Confirm delivery and model warranty
AUDIOGURU · PUNE & INDIA
Make it part of the right system.
Tell us about your room, existing equipment and budget. Our Pune team can help you check compatibility, plan installation and confirm availability before you order.
Description
Definitive Technology at AudioGuru · Product and system advice
Dymension DW-MAX SUR: where it fits in your system
The DW-MAX SUR is a dedicated bipolar in-wall surround speaker. Two woofer-and-tweeter sections face in different directions to spread surround information around the room. It is a useful choice when the cinema design calls for that presentation and you want the surround speakers integrated neatly into the walls.
Why consider this model?
- A dedicated bipolar array supports an enveloping surround layout.
- Adjust the treble balance during final system setup.
- Paint the grille to coordinate with the room’s finish.
Technical details
| Product type | Passive bipolar in-wall surround speaker |
|---|---|
| Mid/bass drivers | 2 × 5.25-inch mineral-filled polypropylene BDSS with Linear Response Waveguide |
| Tweeters | 2 × 1-inch aluminium oxide dome |
| Frequency response, −10 dB | 34 Hz–30 kHz |
| Frequency response, −3 dB | 52 Hz–25 kHz |
| Nominal impedance | 4 Ω |
| Sensitivity | 89 dB at 2.83 V / 1 m |
| Recommended amplifier power | 20–200 W — manufacturer recommendation |
| Dimensions, W × H × D | 241.4 × 473.4 × 100.3 mm |
| Cut-out, W × H | 210.2 × 441.2 mm; use supplied template |
| Nominal mounting depth | 92.9 mm — official product specifications |
| Weight per speaker | 3.25 kg |
| Grille | White, paintable, microperforated magnetic grille |
| Ingress protection | IP55 — manufacturer rating; assess the installation location |
| Connection | Wired speaker-level connection to external amplification |
| Treble adjustment | Three positions: −2 dB, neutral / 0 dB, +2 dB |
Specifications follow the manufacturer’s model-specific product table. The −3 dB and −10 dB frequency ranges use different measurement limits. Use the supplied installation template and allow the mounting and cable clearances shown in the official installation guide.
Plan the system and placement
Use these dimensions for planning. Before cutting, check the supplied template, actual speaker, cavity depth, fixing clearance and cable route. The installation guide may require more clearance than the nominal mounting depth. Choose surround positions around the seating and the intended cinema format. Use amplification suitable for the 4 Ω speaker load; any subwoofer and receiver calibration should be included in the complete system plan.
Package, availability and India warranty
The manufacturer lists the speaker and frame, paintable magnetic grille, cut-out guide and literature pack. Amplification, speaker cable and installation are planned separately; optional pre-construction brackets are not assumed included.
NEEDS CONFIRMATION: current India availability, exact package and applicable India warranty. Ask AudioGuru to itemise the speaker quantity, accessories and installation work on the quotation. Regional warranty terms shown on an overseas brand page do not establish the warranty for your purchase.
Buying advice from AudioGuru
Tell us about your room, the equipment you already own and what you enjoy listening to. We can help check whether the Dymension DW-MAX SUR fits the complete system before you decide.
- System matching: discuss receiver or amplifier compatibility, placement and the complete equipment list.
- Clear pricing: displayed prices include GST. Price-on-request products receive a quotation, and GST invoices are provided.
- Project support: Pune and Maharashtra are our core sales and installation areas. Projects elsewhere in India can be discussed according to scope and location.
- Showroom advice: Monday–Saturday, 11 am–7 pm. Contact us first to confirm demonstration availability for this model.
Frequently asked questions
What does the bipolar design do?
Its two driver sections face in different directions to distribute surround information around the seating area. Ask AudioGuru to check whether that coverage suits your room, receiver and chosen cinema format.
Can it be used in a humid or outdoor area?
The manufacturer rates this model IP55. Ask the installer to assess the intended location, exposure, mounting surface and cable protection; the rating is not a claim that the speaker can be submerged.
How do I confirm the India price and delivery?
Contact AudioGuru with the model, finish, required quantity and delivery PIN code. Ask for current availability, the GST-inclusive quotation where required, package contents and applicable India warranty. GST invoices are provided.
Can AudioGuru help with a setup in Pune or Maharashtra?
Yes. Share your room plan, equipment and location to discuss the scope. Our showroom is at Shop 9, Millenium Star, Dhole Patil Road, near Ruby Hall Clinic, Sangamvadi, Pune 411001. Projects elsewhere in India can also be discussed.
Our buying recommendation
Shortlist the DW-MAX SUR for a cinema design that specifically benefits from bipolar wall-mounted surround coverage.
Official manufacturer references
- Dymension DW-MAX SUR — Official product page
- Dymension DW-MAX SUR — Product information sheet
- Dymension DW-MAX SUR — Installation guide
Product information reviewed on 22 October 2026. AudioGuru buying guidance based on manufacturer documentation.
Specification basis — official brand information checked 22 October 2026: Manufacturer reference 1
