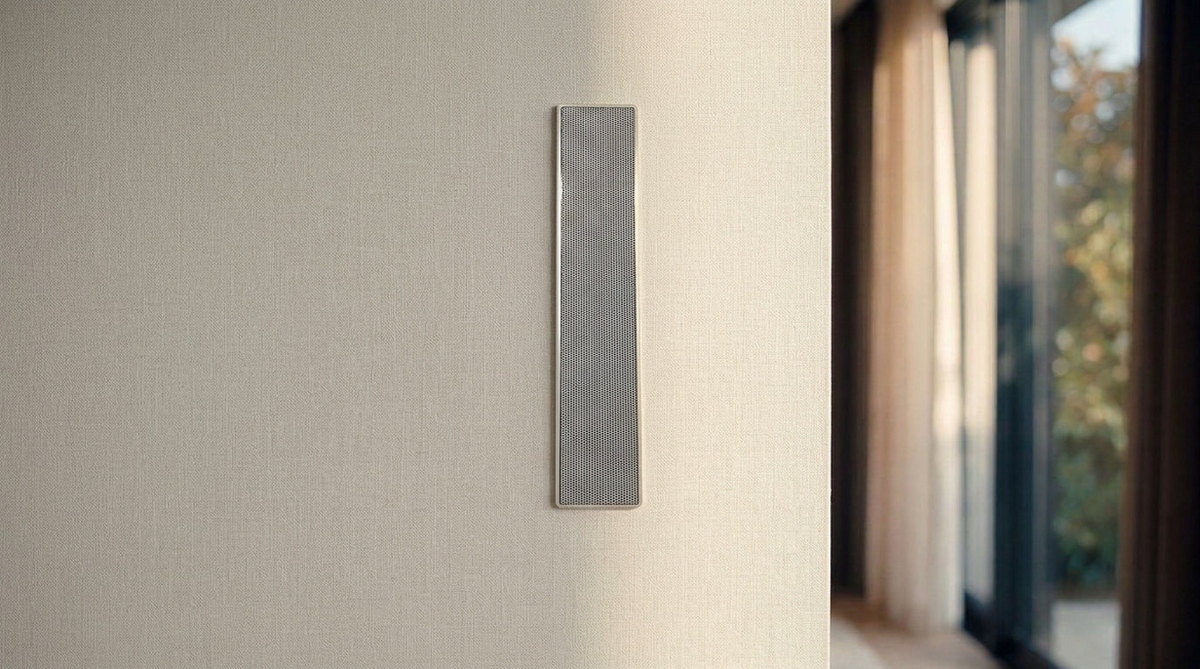

Magna Audio Nano-Framed Speaker Series
Bring music into slim wall panels with a narrow speaker profile. Nano-Framed gives you a choice of single-driver and array formats for rooms where space and appearance both matter.
Price on request. Enquire for your configuration, finish and quantity. GST invoice provided. Confirm availability and India warranty before ordering.
Did you like this product? Add to favorites now and follow the product.
- GST invoice
Provided with your purchase
- System matching
Advice for your equipment and room
- Project planning
Pune, Maharashtra & India
- Purchase clarity
Confirm delivery and model warranty
AUDIOGURU · PUNE & INDIA
Make it part of the right system.
Tell us about your room, existing equipment and budget. Our Pune team can help you check compatibility, plan installation and confirm availability before you order.
Description
Nano-Framed Speaker Series
Bring music into slim wall panels with a narrow speaker profile. Nano-Framed gives you a choice of single-driver and array formats for rooms where space and appearance both matter.
Bring the speaker into the wall design early
Nano-Framed is worth considering when a conventional speaker would take too much visual space. Start with the wall or joinery elevation, listening positions and available cavity. The narrow grille can be planned alongside panel joints and other room details.
Choose 1D for a small supporting zone, then discuss the array formats when the listening area needs a larger arrangement. The electrical load changes across the range, so the selected version must be matched with the amplifier. The 180 Hz manufacturer-listed lower response also makes bass planning important for a fuller music or cinema system.
Compare the Micro-Framed arrays, explore subwoofer options, or see the Magna Audio range. AudioGuru’s Pune team can review a Maharashtra or India project with your architect or installer and prepare an itemised quotation. Confirm the model, finish, mounting clearance and supplied equipment before ordering.
Technical details and choices
| 1D | One 3 × 1-inch full-range driver; 16 ohms; 20 W recommended amplification |
|---|---|
| Array 2D | Two drivers; 8 ohms; 40 W recommended amplification |
| Array 3D | Three drivers; 6 ohms; 60 W recommended amplification |
| Array 4D | Four drivers; 4 ohms; 80 W recommended amplification |
| Construction | Aluminium open-baffle enclosure; perforated grille |
| Mounting | Indoor wall or ceiling integration; no integrated lighting |
| Depth | Current series page states 44 mm; confirm installation drawing |
| Frequency response | 180 Hz–20 kHz across 1D, 2D, 3D and 4D, per the official technical table. |
| Sensitivity (1 W/1 m) | 1D: 84 dB SPL; 2D: 87 dB SPL; 3D: 88.5 dB SPL; 4D: 90 dB SPL. |
| Weight | 1D: 150 g; 2D: 250 g; 3D: 360 g; 4D: 470 g. |
| Overall face dimensions (W × H) | 1D: 56.5 × 114 mm; 2D: 105 × 199 mm; 3D: 105 × 284 mm; 4D: 105 × 369 mm, from the official dimension graphic. These are not cut-out dimensions. |
| Model-specific placement | Technical table lists 1D for indoor wall or ceiling installation; 2D, 3D and 4D arrays for indoor wall installation. |
| Finish choices | 13 standard cabinet finishes and 10 standard grille finishes, with custom options by request. Confirm the finish and availability on the quotation. |
Before ordering: The catalogue describes a 55 mm profile. Profile and mounting depth are different measurements; approve the drawing for the selected version before cutting.

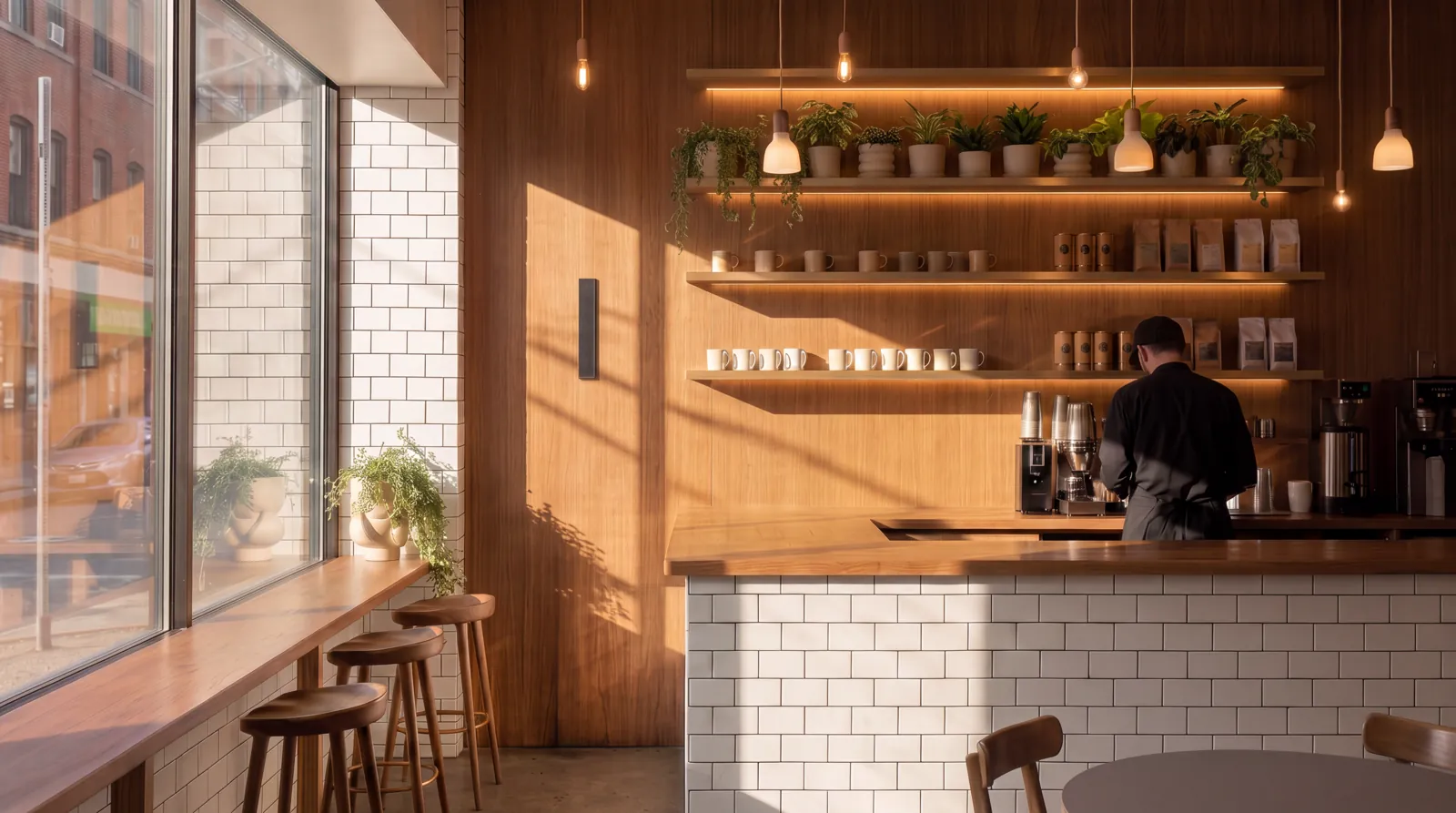

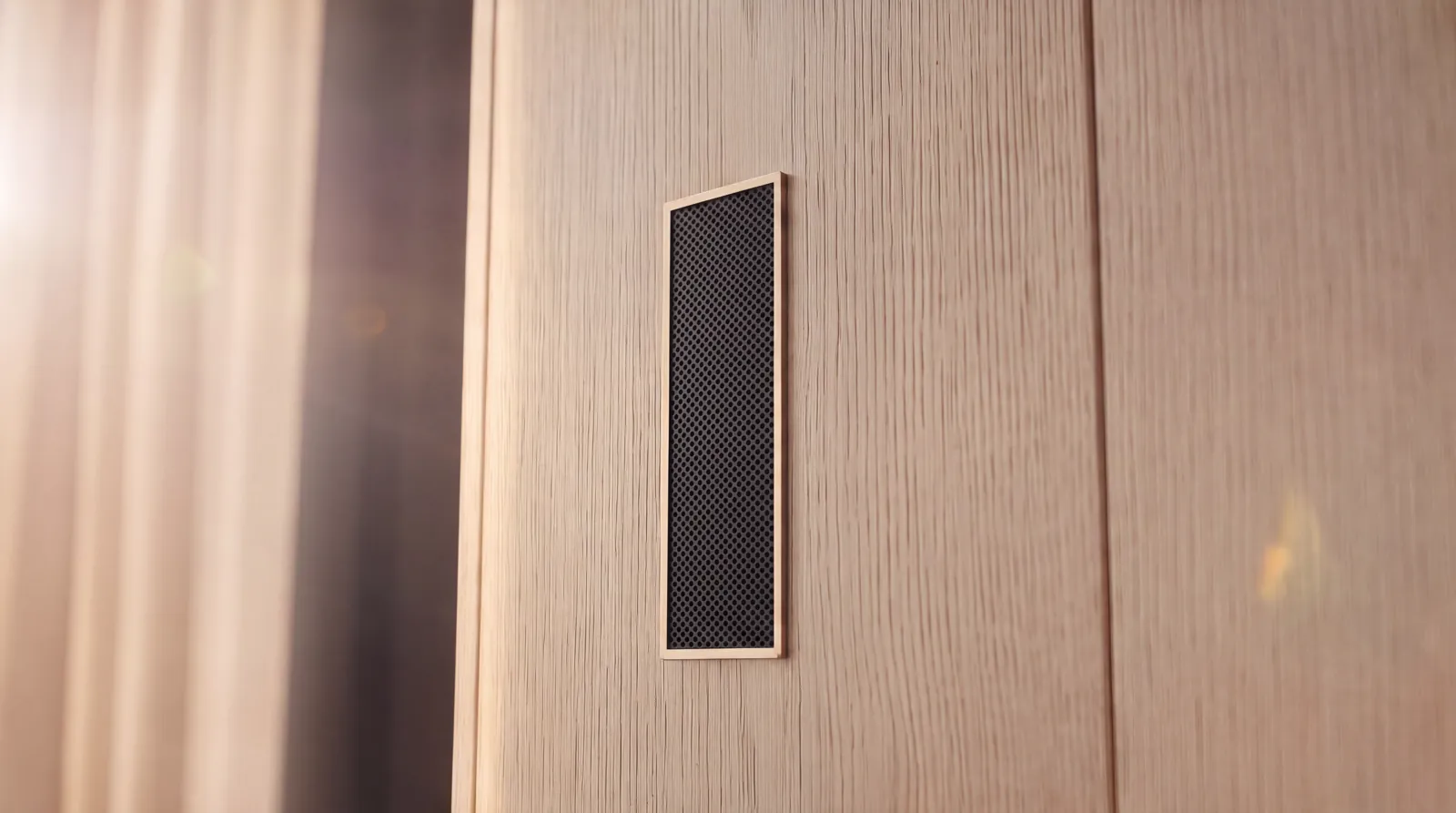

Sources: customer-supplied MAGNA catalogue, pages 10–11; Official Magna product information, Official Magna technical information. Checked 29 October 2026. Images show an example finish or installation; the approved quotation defines your exact product.
Request a tailored quotation
Price on request. Share the model or configuration, quantity, preferred finish, room or garden plan and delivery PIN code. We will confirm the supplied equipment, availability and India warranty. Amplifiers, cabling, mounting, lighting accessories, delivery and installation are included only when listed in your quotation.
AudioGuru provides GST invoices. Our Pune team helps with system matching and project planning, with Pune and Maharashtra as our core installation areas. Projects elsewhere in India are arranged according to location and scope.
Frequently asked questions
Does the 44 mm depth tell my contractor everything needed for installation?
No. It is a published product depth, not a complete installation allowance. Confirm the model’s cut-out, fixing method, cable clearance, surrounding structure and service access using the approved drawing. The face dimensions shown in the table must not be used as cutting measurements.
Additional information
| Manufacturer | Magna Audio |
|---|
