Description

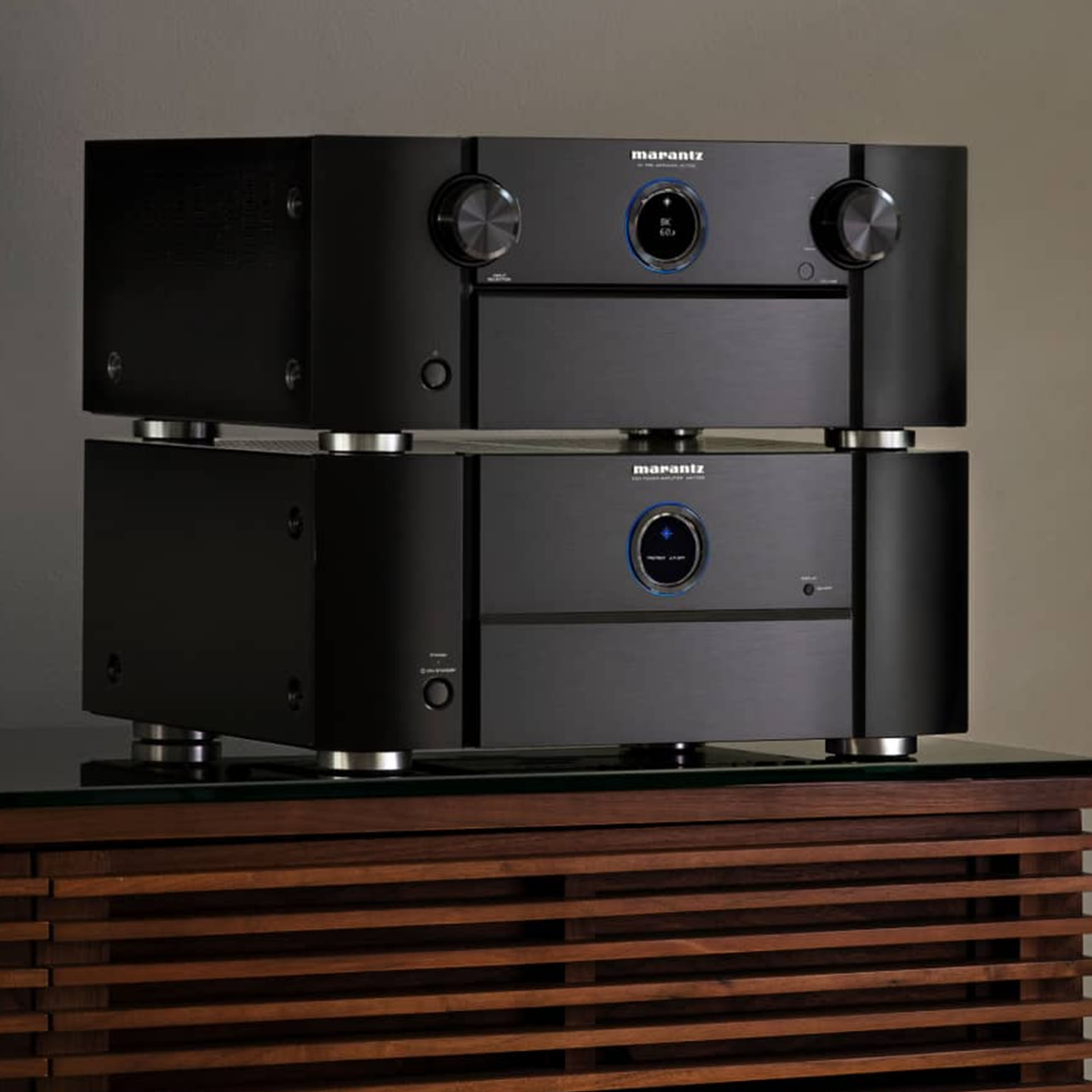

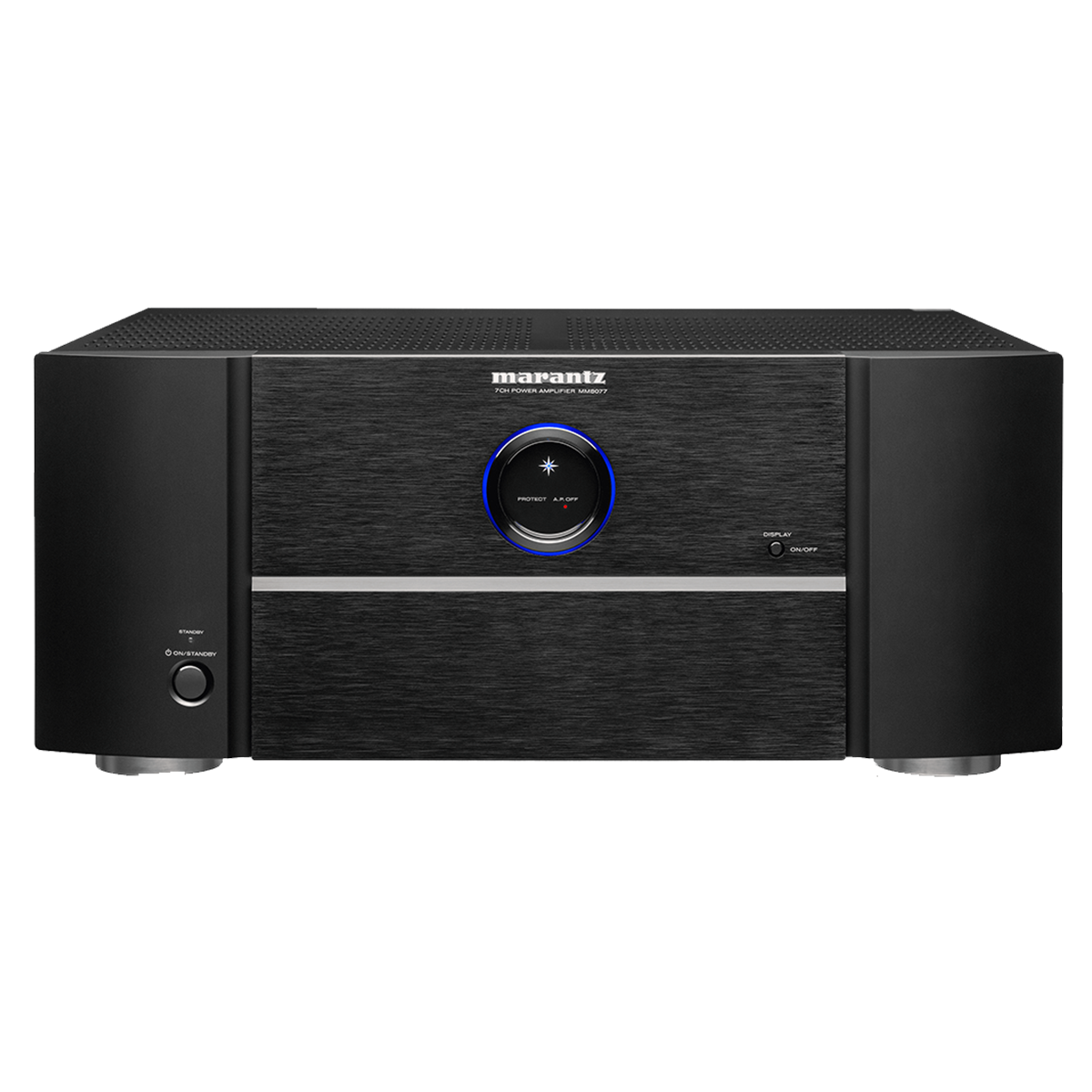

The Marantz MM-7055 is a 5-channel power amplifier designed to deliver powerful and precise sound for your home theater system.

Here’s a detailed breakdown of its features:

Marantz MM-7055

Power Output:

• Delivers 140 watts of power per channel into 8 ohms (2 channels driven)
• Can handle even demanding speakers with its high current output

Amplifier Design:

• Features a discrete current feedback topology for accurate and detailed sound reproduction
• Class A/B amplifier design ensures high efficiency and low distortion

Connectivity:

Additional Features:

• Massive power supply for consistent power delivery
• Toroidal transformer to minimize noise and improve sound quality
• Custom-designed components for optimal performance
• Aluminum extrusion heat sink for efficient heat dissipation

Applications:

• Ideal for powering a 5.1 channel home theater system
• Can also be used in a stereo setup for powerful music listening

Availability:

The Marantz MM-7055 may be discontinued or have limited availability based on online searches.

Product Technical information

Marantz MM-7055 FAQ

Q: What is the power output of the MM-7055?
A: The MM-7055 delivers 140 watts per channel into 8 ohms (20 Hz to 20 kHz, 0.08% THD, 2 channels driven). It can also deliver 170 watts per channel into 6 ohms.

Q: What type of amplification does the MM-7055 use?
A: The MM-7055 uses a discrete amplification design for high-quality sound reproduction.

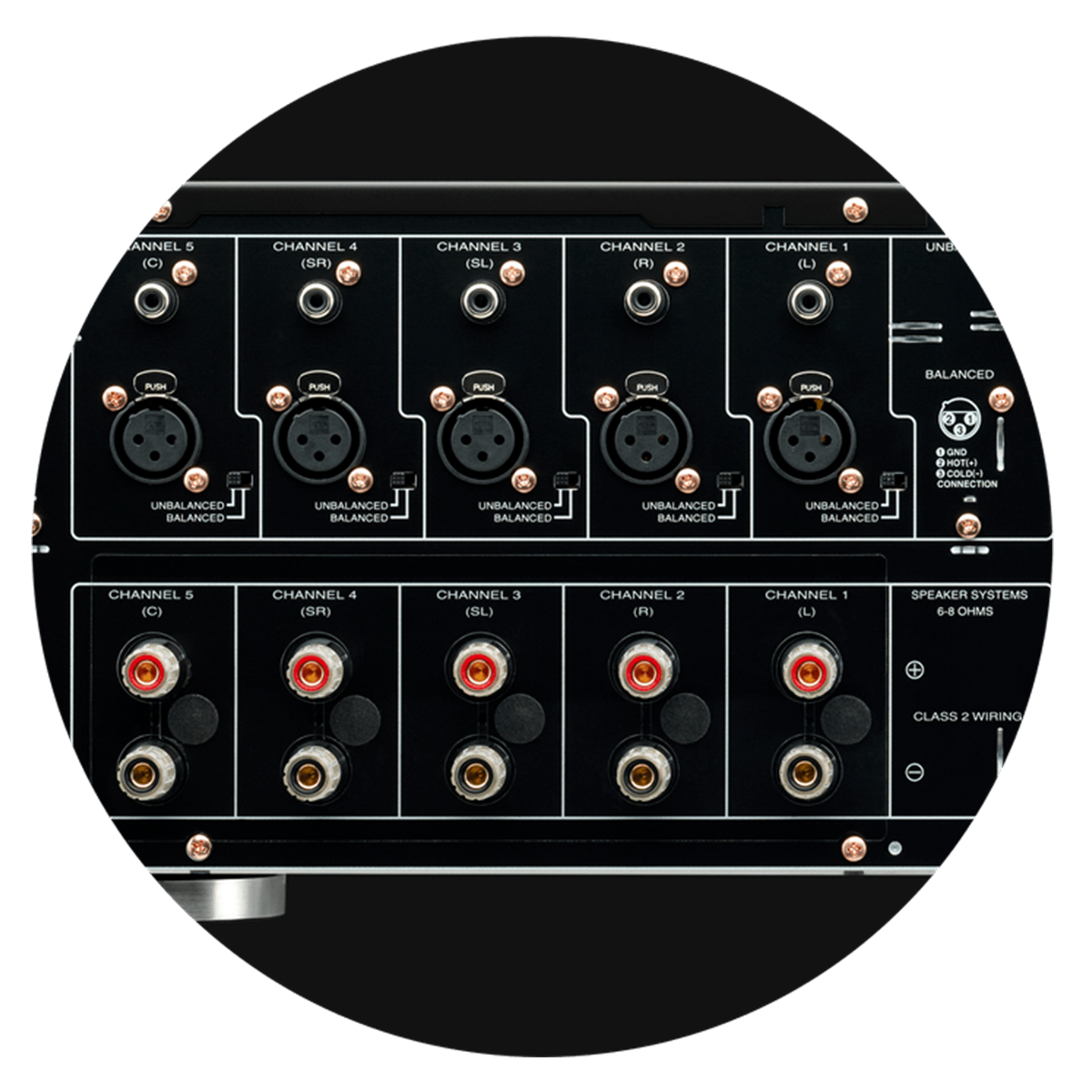

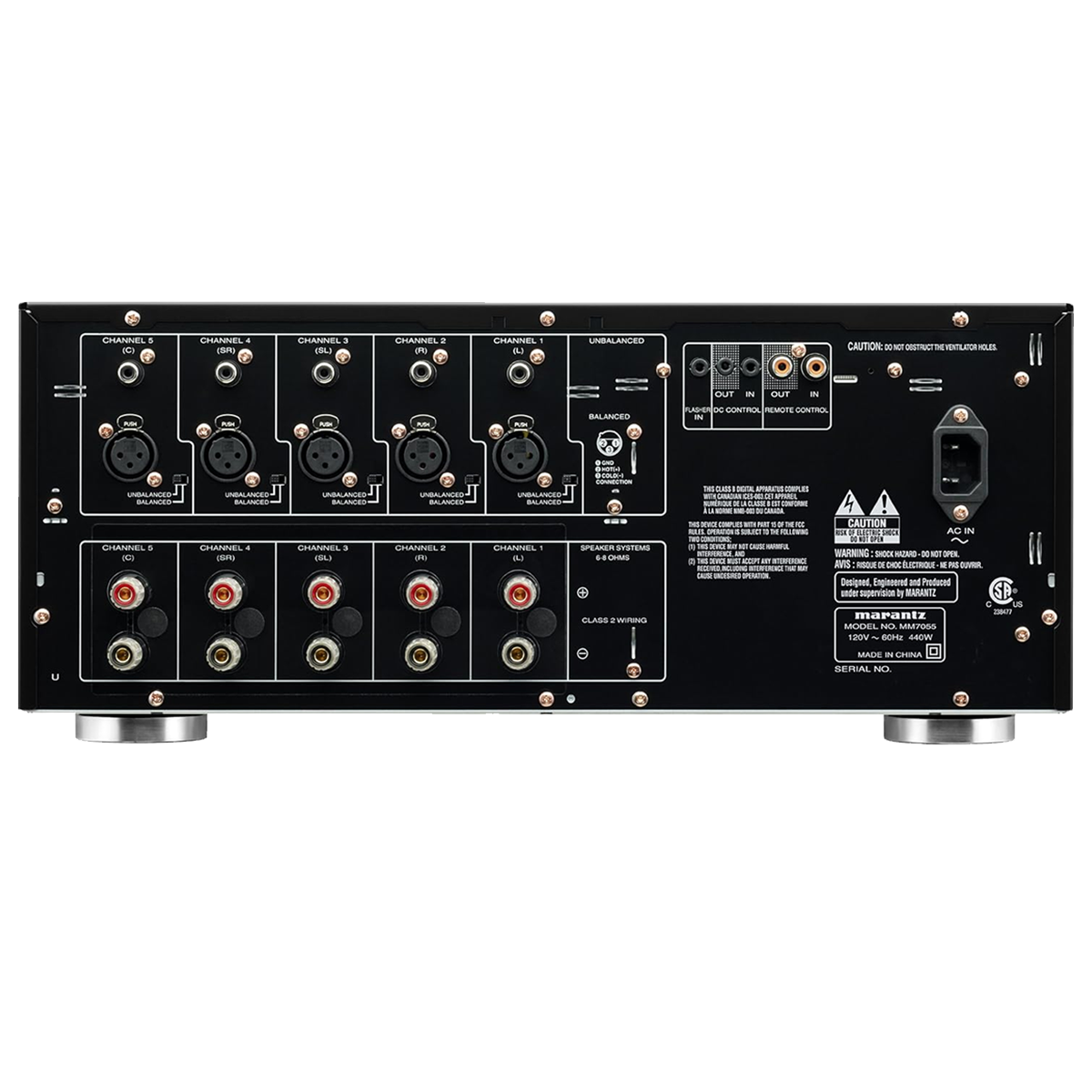

Q: What type of inputs does the MM-7055 have?
A: The MM-7055 has both balanced and unbalanced inputs, allowing you to connect a wide variety of pre-amplifiers and processors.

Q: What is the current feedback topology?
A: The MM-7055 utilizes a current feedback topology which helps to ensure wide bandwidth and fast transient response.

Q: What are the dimensions and weight of the MM-7055?
A: The dimensions of the MM-7055 are 17-3/8 inches (W) x 7-3/16 inches (H) x 15-1/8 inches (D). It weighs 34.6 pounds.
